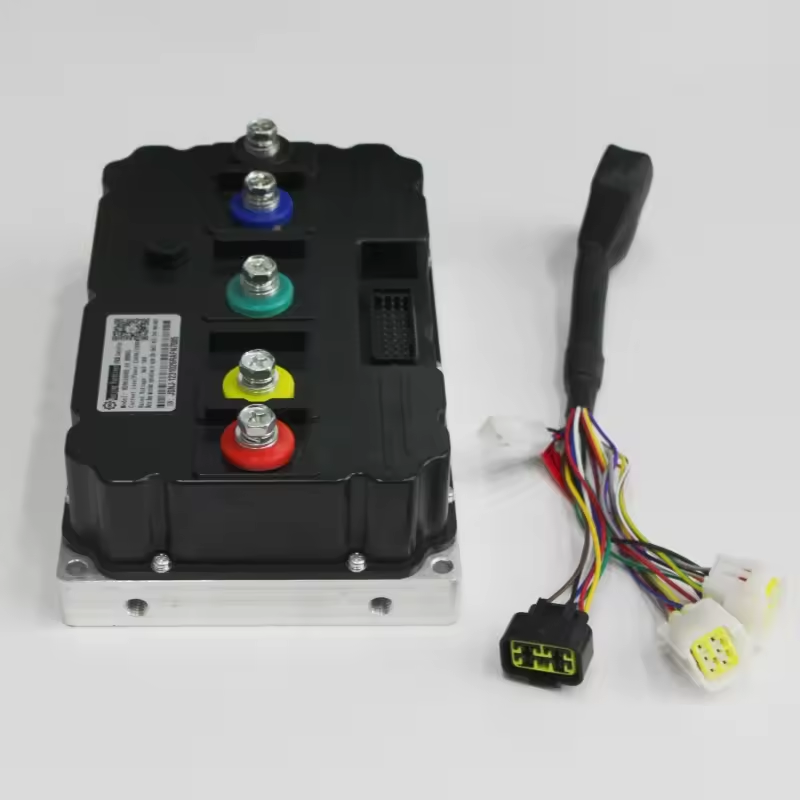

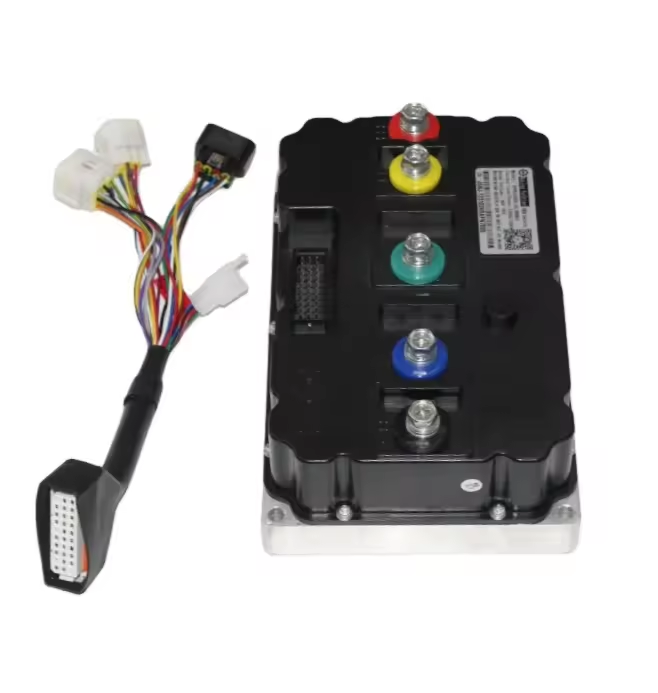

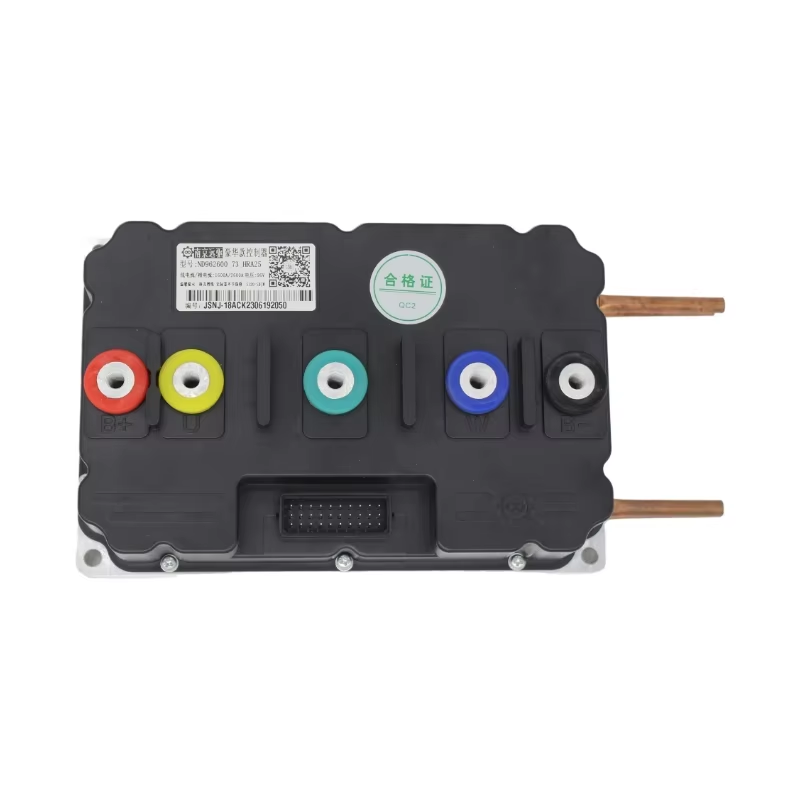

ST961800 BLDC 1800A 8-12kW For High Power Electric Motorcycle Controller

$950.00 USD

~~$950.00 USD~~ $950.00 USD

Sale Sold out

Color Black

Type ST961800

Quantity

Overview1) Product features:

a) Adopt accurate FOC algorithm, suitable for weak magnetic expansion:anti-slip function, maximum speed limit,electronic brake, Energy recovery

b) Rich software parameter configuration and visual parameter monitoring. Support PC, mobile App online adjust controller parameters and functions.

c) Perfect functional protection: for voltage, current, temperature, motor,gear, accelerator pedal, Brakes, batteries, meters, etc. are monitored.

d) support line communication /CAN communication instrument, can accurately adjust the display speed of the instrument.

e) Rich function customization: support pin function customization, support BOOST function, side brace power off function, Bucket lock function, P gear function, cruise function can be configured by itself. Parking time, strength can be adjusted. The BOOST duration and interval are adjustable.

f) Support the recording of working hours, working mileage, average speed, average energy consumption and alarms. By oneself Set tire specifications, electronic speed ratio, and calculate working mileage and average speed data.

g) The parameters inside the controller can be read and saved to the mobile phone or computer, and the parameters can be returned if necessary Pass to controllerh) Support a variety of motor Angle sensors: Hall sensor, magnetic encoder, rotary transformer (Note: optional, Please confirm before placing an order).

i) Support electronic brake force adjustment at each speed.

j) Support a variety of gear switching modes: high speed, toggle three-speed, plus or minus, Jog the third gear, Jog 4 and wait.k) According to user requirements to adjust the undervoltage protection mode, when the battery is out of power or to continue Ship.

Performance Parameter

No.	Item	Parameter	Remark
1	Model	ST961800
2	DC Voltage	48-96V
3	Max line current	800A
4	Peak Phase current	1800A
5	Support motor sensor	Hall/ Encoder	Options
6	Communication Mode	Line /CAN /RS485	Options
7	Working Temperature Range	-40~80℃
8	Cooling Mode	Nature Air Cooling
9	Efficiency	98%
10	Weight	6.5KG

Dimension

Company Profile

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient
packaging services will be provided.Q1. How can I get a sample for reference ?
A1. Yes, we send samples for testing
Q2.Can you give me some discount ?
A2. Yes, more quantity lower price
Q3. Can I do our logo or brand on electric bikes?
A3. Yes, we accept OEM,we also can change configuration,color according to your requirement,but you need to pay extra
charges.
Q4. What's the delivery time?
A4. For sample order,if we have stock,the delivery time is about one week.For other order,as usual,25 days after payment.
Q5.Can I mix different models in one container?
A5.Yes,different models can be mixed in one container,but the quantity of each model should not be less than MOQ.
Q6. What's your warranty terms?
A6. We offer different warranty time for different accessories.Main parts for one year.
